Rixson 994M 689
Description

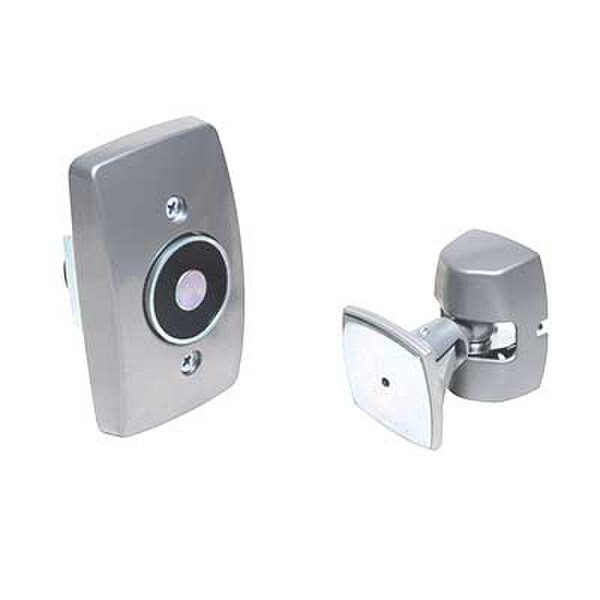

The 994M electromagnetic door holder is a wall-mounted unit with adjustable armature and concealed wiring, recommended for solid wood doors.
Features
- Wall mount
- Adjustable armature
- Concealed wiring
- Total projection 3 ¾"
- Adjustable armature rotation up and down, back and forth for better alignment
- Cannot be used with 900 base or spacers
- Can be used without adjustment piece making it a model 997M
- Mounting requirements: 2" x 4" x 2 ½" outlet box
- Wall must be properly reinforced and outlet box adequately fastened
- Tri-volt (120VAC, 24VAC/DC, 12VDC)
- 25-40 lbs. holding force
Benefits
- Adjustable armature rotation up and down, back and forth for better alignment
- Doors remains open unless electromagnetic holder is released by alarm or smoke detector
- Fail safe operation; power failure releases door to close
